Halls 5 + 6

Halls 5 and 6 are accessed via escalator or passenger lift. Loading ramps allow the exhibits to be transported directly into the halls by any type of vehicle, from cars to semitrailer trucks. Spaces K1-K5, located on the same level, may be used as conference rooms or ancillary accommodation.

Visitors to Halls 5 and 6 may wish to dine and unwind at the 180-seat Yellow restaurant or the 70-seat snack bar of the same name.

Area

In total: 7’576 m²
Halle 5: 3’788 m²
Halle 6: 3’788 m²

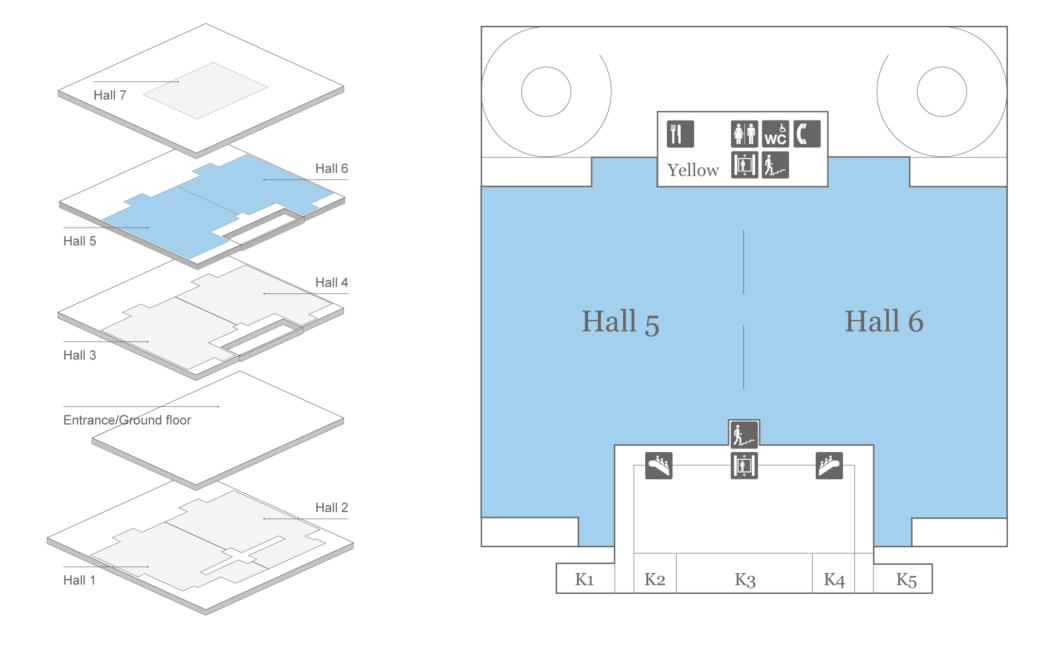

Floor plan

60 x 57 m

Height

Height: 5.50 m
Clear height: 6 m

Floor load

Floor load capacity
1’200 kg/m²

Pillar grid

19.20 x 9.60 m

• More information about the halls

  Eyebolt height: 6.70 m

  Trafficability: Lkw, 40 t

  Service grid: 1 Medienpunkt pro 45 – 50 m²

  Goods lift: 3 x 6 m; height 3.50 m, 8.6 t load capacity

  Door height: 4.50 m

  Service connections: Floor sockets for power, water, telephone and internet

• Restaurants

  “Yellow”, 180 seats
  Snackbar “Yellow”, 70 seats

• Other rooms

  K1 – K5
